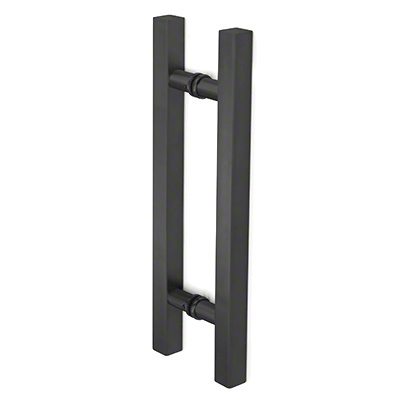

CRL Ladder Style Pulls attract attention when mounted to a heavy frameless shower enclosure. The extra height, when compared to typical shower door pull handles, makes for a unique appearance and contemporary design. Ladder Style Pull Handles are for back-to-back mounting using supplied through-bolts on 5/16″ or 1/2″ (8 or 12 mm) thick glass.
Features:
- An Attractive Handle to Add Distinction
- Square Lines Complement Contemporary Hardware
- Stocked in Popular 6″ and 8″ (152 and 203 mm) Sizes and features 3/4″ (19 mm) Square Tubing
- Use 5/16″ to 1/2″ (8 to 12 mm) Monolithic Tempered Glass
Technical References & CAD Drawings
| Brochures & Literature | Cleaning & Maintenance | ||
| Frameless Shower Door Hardware Catalog
|
Frameless Shower Door Glass and Hardware Cleaning Instructions
|
Product Details
| Construction | Tubular | Mounting Center To Center | 6 in. (152mm) 8 in. (203 mm) |
| Design Style | Squared | Mounting Type | Glass Mount – Back To Back |
| Diameter | 3/4 in. ( 19 mm) | Opening Style | Slide Fold, Swing(side), Pivot(floor) |
| Enclosure Type | Corner, Niche, Bathtub, Tailor Made Solutions | Overall Length | 10 in. (254 mm) 12 in. (305 mm) |
| Glazing Thickness | 5/16 in. To 1/2 in. (8 mm To 12 mm) | Projection From Surface | 2-1/2 in. (64 mm) |
| Material | Brass | Tube Profile | Square |
| Tube Size | 3/4 |
