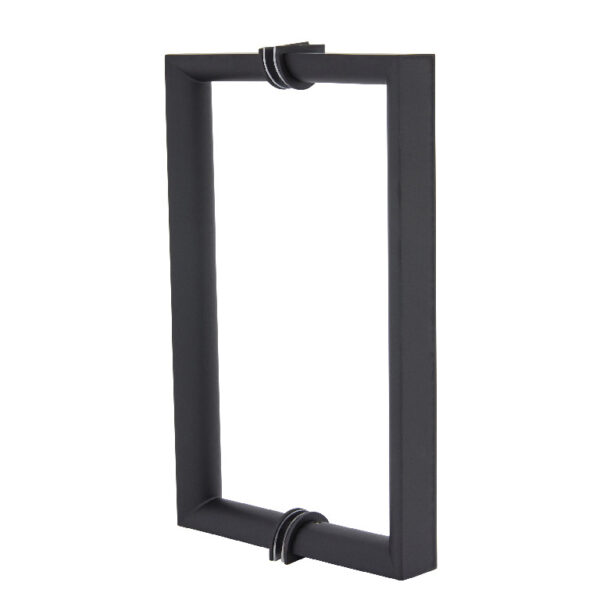

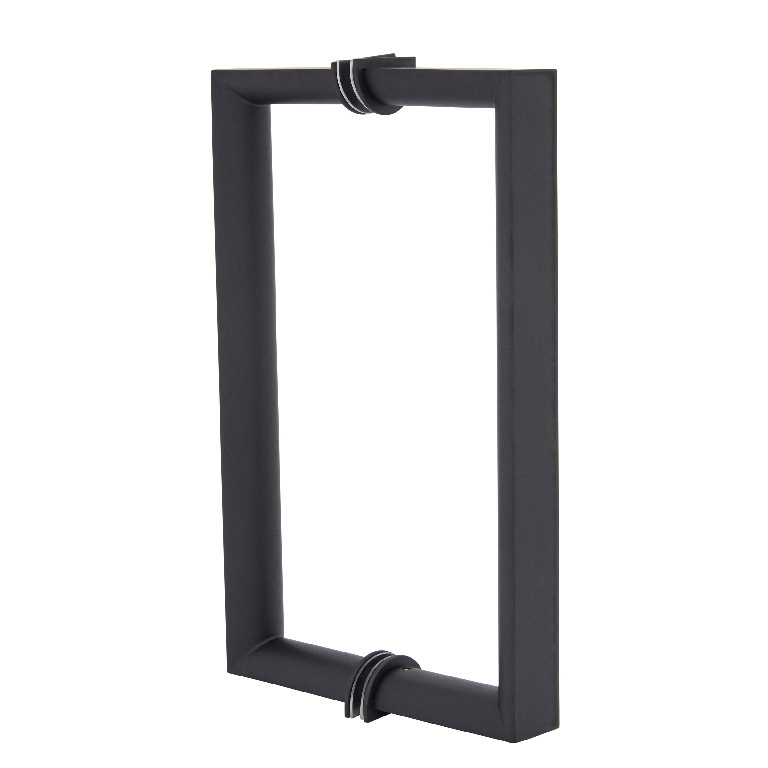

CRL RM Series Flat Outside Surface/Round Tubing Inside Back-to-Back Pull Handle

The CRL RM Series Flat Outside Surface/Round Tubing Inside Back-to-Back Pull Handles offer features from both the popular SQ and MT Series Handles. The RM Series Handle has a flat outside surface, thus having the square cornered appearance of the SQ Series. Therefore it is a good choice for similar CRL Hinge Series such as Geneva, Vienna, Concord, Cardiff, and others. The inside portion of the handle has the same round tubing as the MT Series Handle, ensuring a comfortable grip.

CRL’s offering of quality Pull Handles has grown to over a dozen distinct models in numerous different finishes. There’s a handle to complement the décor of virtually any shower or wardrobe door, and each one is constructed of only the finest materials. Whether you choose a back-to-back or single-sided handle, you can rest assured that it will be easy-to-install, and will serve its purpose beautifully for many years. Custom designs and finishes are also available when you need something special.

Features:

• Flat Outside Surface with Round Tubing Inside Surface for Comfortable Grip
• Excellent Match for CRL Geneva, Vienna, Concord, Cardiff, and Other Square Cornered Hinges
• Stocked in Several Popular Finishes
• Use 1/4″ to 1/2″ (6 to 12 mm) Monolithic Tempered Glass

Specifications:

• Material: 3/4″ (19 mm) Brass Tubing; 1-1/4″ (32 mm) Metal Washers
• Glass Thickness Range: 1/4″ to 1/2″ (6 to 12 mm)
• Hole Diameter Required: 1/2″ (12 mm)
• Center-to-Center Hole Spacing: 6″ (152 mm); 8″ (203 mm)

Technical References & CAD Drawings

Brochures & Literature		CAD Drawings – dwg
Frameless Shower Door Hardware Catalog		RM Series Back-to-Back Detailed CAD Drawings.dwg
CAD Drawings – pdf		Cleaning & Maintenance
RM Series Back-to-Back Detailed CAD Drawings.pdf		Frameless Shower Door Glass and Hardware Cleaning Instructions

Product Details
