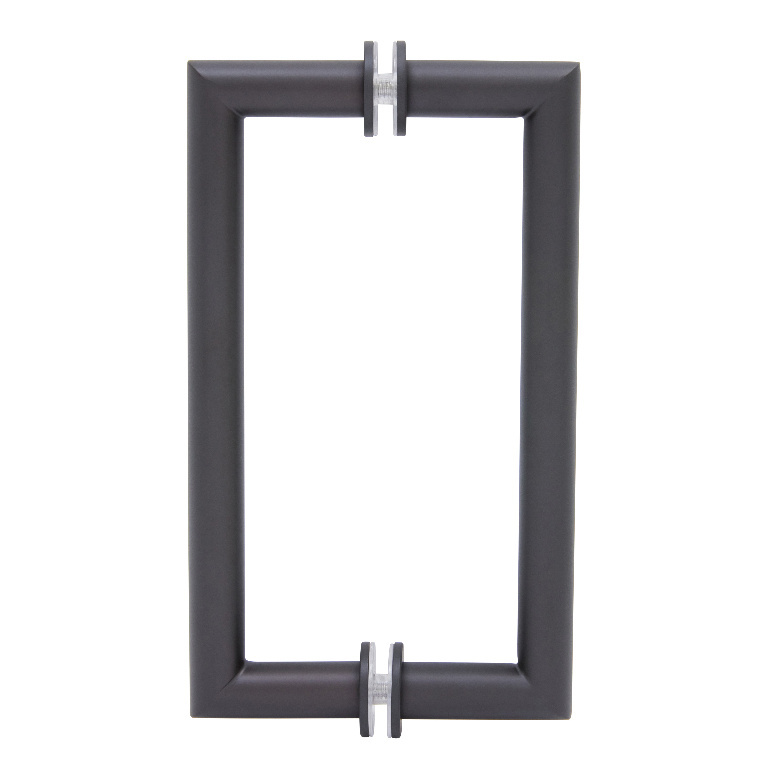

CRL MT Series Round Tubing Mitered Corner Back-to-Back Pull Handle

The MT Series Round Tubing Mitered Corner Back-to-Back Pull Handles offers the contrast of round tubing along with square mitered corners, which makes it a Handle that is sure to be noticed. The round tubing provides a comfortable gripping surface and strong feel. Back-up plastic washers and nylon spacers are included to protect against glass-to-metal contact.

CRL’s offering of quality Pull Handles has grown to over a dozen distinct models in numerous different finishes. There’s a handle to complement the décor of virtually any shower or wardrobe door, and each one is constructed of only the finest materials. Whether you choose a back-to-back or single-sided handle, you can rest assured that it will be easy-to-install, and will serve its purpose beautifully for many years. Custom designs and finishes are also available when you need something special.

Features:

• An Attractive Handle to Add Contrast to Decor
• Stocked in Popular 6″ and 8″ (152 and 203 mm) Sizes
• Several Stock Finishes, with Custom Finishes Available
• Use 1/4″ to 1/2″ (6 to 12 mm) Monolithic Tempered Glass

Specifications:

• Material: 3/4″ (19 mm) Brass Tubing; 1-1/4″ (32 mm) Metal Washers
• Glass Thickness Range: 1/4″ to 1/2″ (6 to 12 mm)
• Hole Diameter Required: 1/2″ (12 mm)
• Center-to-Center Hole Spacing: 6″ (152 mm); 8″ (203 mm)

Technical References & CAD Drawings

Brochures & Literature		CAD Drawings – pdf
Frameless Shower Door Hardware Catalog		MT Series Back-to-Back Detailed CAD Drawings.pdf
Specifications		Cleaning & Maintenance
Door Pull Specifications		Frameless Shower Door Glass and Hardware Cleaning Instructions
CAD Drawings – dwg
MT Series Back-to-Back Detailed CAD Drawings.dwg

Product Details
