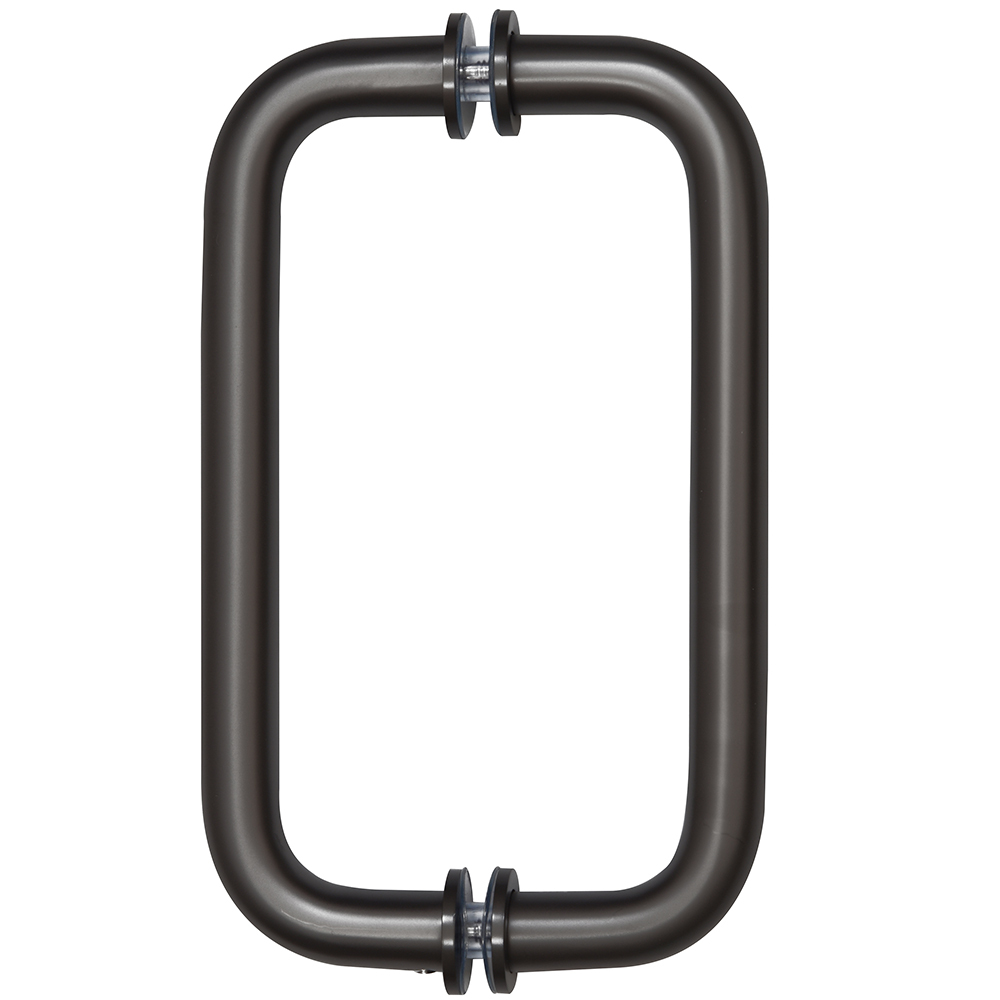

CRL BM Series Tubular Back-to-Back Pull Handle

The CRL BM Series of Back-to-Back Tubular Pull Handles with Metal Washers are constructed of 1.5 mil thick heavy brass tubing. Decorative metal back-up washers are included, as well as plastic washers to protect against glass-to-metal contact. Consists of one pull for each side of the door (back-to-back).

Their offering of quality Pull Handles has grown to over a dozen distinct models in numerous different finishes. There’s a handle to complement the décor of virtually any shower or wardrobe door, and each one is constructed of only the finest materials. Whether you choose a back-to-back or single-sided handle, you can rest assured that it will be easy-to-install, and will serve its purpose beautifully for many years. Custom designs and finishes are also available when you need something special.

Features:

• Their Most Popular Handle
• Decorative Metal Washers Also Serve to Cover Any Hole Defects in Glass
• Numerous Finish Choices in 6″ and 8″ (152 and 203 mm)
• Custom Finishes Available
• Heavy 3/4″ (19 mm) Diameter Tubular Construction (1.5 mil Thick)
• Use Monolithic Tempered Glass

Specifications:

• Material: 3/4″ (19 mm) Diameter Brass Tubing (1.5 mil thick); 1-1/4″ (32 mm) Diameter Washers

• Glass Thickness Range: 1/4″ (6 mm) to 1/2″ (12 mm)

• Hole Diameter Required: 1/2″ (12 mm)

• Center-to-Center Hole Spacing: 8″ (203 mm)
• Thread Size: 1/4″-20

Technical References & CAD Drawings

Brochures & Literature		CAD Drawings – PDF
Frameless Shower Door Hardware Catalog		BM6X6 BM8X8 Detailed CAD Drawings.pdf
Specifications		Cleaning & Maintenance
Door Pull Specifications		Frameless Shower Door Glass and Hardware Cleaning Instructions
CAD Drawings – dwg
BM6X6 BM8X8 Detailed CAD Drawings.dwg
