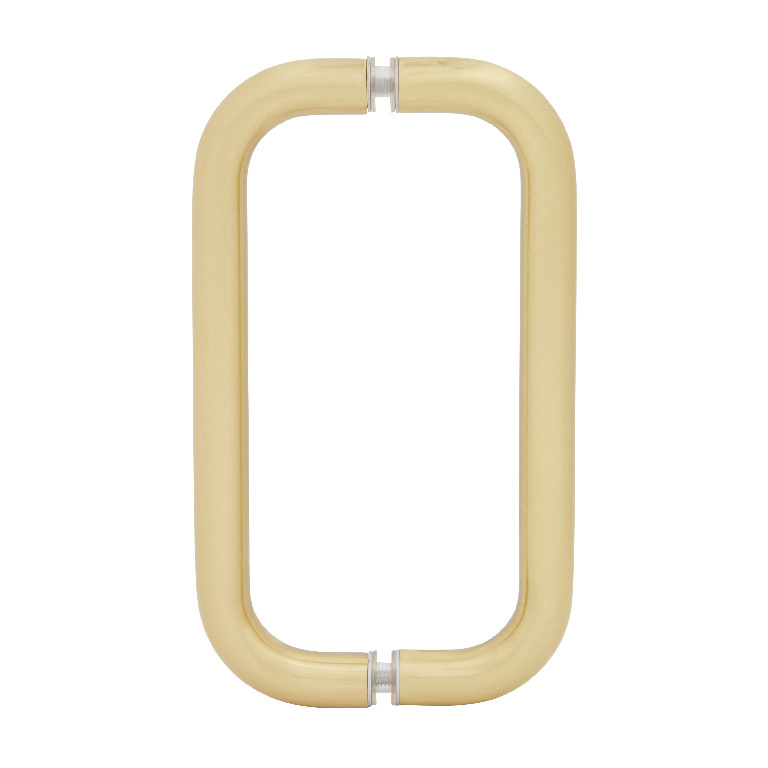

The CRL BM Series of Back-to-Back Tubular Pull Handles without Metal Washers are constructed of 1.5 mil thick heavy brass tubing. These handles do not include decorative metal washers, although standard plastic washers are included to protect against glass-to-metal contact. Consists of one pull for each side of the door (back-to-back), and come in 6″ and 8″ sizes.
CRL’s offering of quality Pull Handles has grown to over a dozen distinct models in numerous different finishes. There’s a handle to complement the décor of virtually any shower or wardrobe door, and each one is constructed of only the finest materials. Whether you choose a back-to-back or single-sided handle, you can rest assured that it will be easy-to-install, and will serve its purpose beautifully for many years. Custom designs and finishes are also available when you need something special.
Features:
- Several Sizes in Our Most Popular Finishes
- Heavy 3/4″ (19 mm) Diameter Tubular Construction (1.5 mil Thick)
- No Metal Washers Creates a Sleek, Continuous Profile
- Monolithic Tempered Glass
Specifications:
- Material: 3/4″ (19 mm) Diameter Brass Tubing (1.5 mil thick)
- Glass Thickness Range: 1/4″ (6 mm) to 1/2″ (12 mm)
- Hole Diameter Required: 1/2″ (12 mm)
- Center-to-Center Hole Spacing: 6″ (152 mm); 8″ (203 mm)
- Thread Size: 1/4″-20
Technical References & CAD Drawings
| Brochures & Literature | CAD Drawings – pdf | ||
| Frameless Shower Door Hardware Catalog
|
BMNW Detailed CAD Drawings.pdf
|
||
| Specifications | Cleaning & Maintenance | ||
| Door Pull Specifications
|
Frameless Shower Door Glass and Hardware Cleaning Instructions
|
Product Details
| Construction | Tubular | Mounting Type | Glass Mount – Back To Back |
| Diameter | 3/4 in. ( 19 mm) | Projection from Surface | 2-1/2 in. (64 mm) |
| Glazing Thickness | 1/4 in. To 1/2 in. (6 mm To 12 mm) |
Series | BM |
| Material | Brass | Style Washer | No |
| Mounting Center To Center | 6 in. (152 mm) 8 in. (203 mm) |
Thread Size | 14-20 |
