CRL Clear Acrylic Bars give you that see through appearance preferred by many designers. Fabricated of 3/4″ (19 mm) clear acrylic rod, they are secured with metal finish ring hardware.
Features:
- Acrylic Material Helps Perpetuate the ‘All-Glass’ Look
- Fits 1/4″ to 1/2″ (6 to 12 mm) Thick Glass
- 1-1/8″ (28 mm) Diameter Brass Washers
- Choice of Finish for Accent Ring Washers to Assist in Matching Various Décors
- Use Monolithic Tempered Glass
Specifications:
- Material: 3/4″ (19 mm) Diameter Clear Acrylic Rod; 1-1/8″ (28 mm) Diameter Brass Washers
- Available Trim Hardware: Polished Chrome, Polished Brass, and Brushed Nickel
- Glass Thickness Range: 1/4″ to 1/2″ (6 to 12 mm)
- Hole Diameter Required: 1/2″ (12 mm)
Technical References & CAD Drawings
| Brochures & Literature | Cleaning & Maintenance | ||
| Frameless Shower Door Hardware Catalog
|
Frameless Shower Door Glass and Hardware Cleaning Instructions
|
||
| Specifications | |||
| CAP6X6 CAP8X8 Specifications
|
Product Details

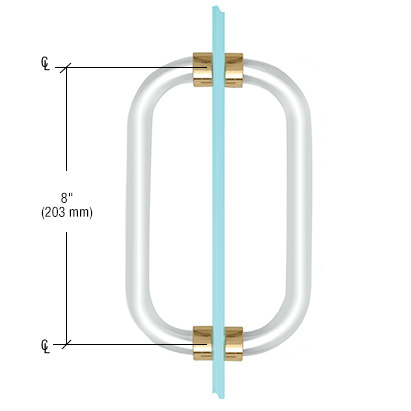

| Diameter | 3/4 in. (19 mm) | Mounting Center To Center | 6 in. (152mm) 8 in. (203 mm) |
| Glazing Thickness | 1/4 in. To 1/2 in. (6mm To 12 mm) |
Mounting Type | Glass Mount – Back To Back |
| Material | Acrylic |
