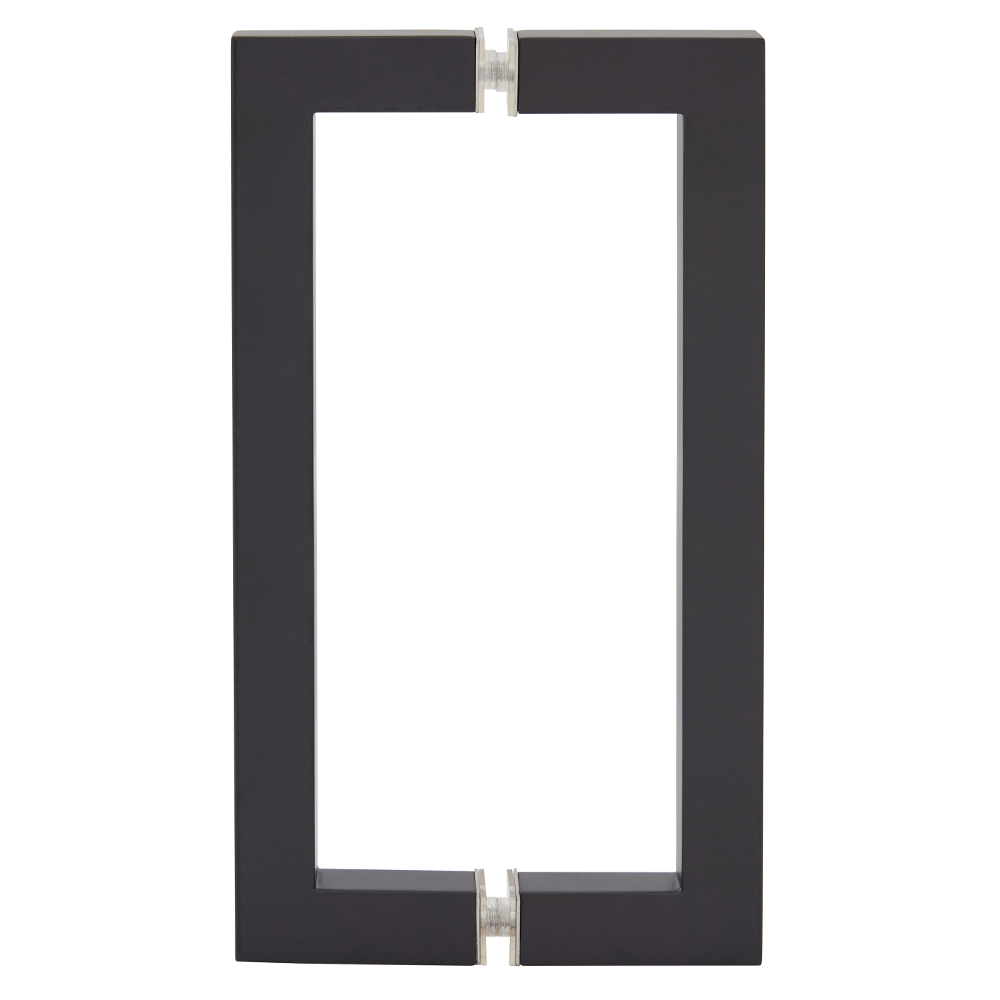

CRL SQ Series Square Tubing Back-to-Back Pull Handles

The sharp looking CRL SQ Series Square Corner Handle gives the clean and traditional look that many designers prefer. This Handle perfectly complements numerous CRL Hinge Series with similar corner styles, such as Geneva, Vienna, Concord, Cardiff, and others. Back-up washers and nylon spacers are included to protect against glass-to-metal contact.

Their offering of quality Pull Handles has grown to over a dozen distinct models in numerous different finishes. There’s a handle to complement the décor of virtually any shower or wardrobe door, and each one is constructed of only the finest materials. Whether you choose a back-to-back or single-sided handle, you can rest assured that it will be easy-to-install, and will serve its purpose beautifully for many years. Custom designs and finishes are also available when you need something special.

Features:

• Two Sizes Available 6″ and 8″ (152 and 203 mm)
• Several Designer Finishes
• Square Corners Make This Handle the Ideal Choice to Match Square Cornered Hinges
• Use 1/4″ to 1/2″ (6 to 12 mm) Monolithic Tempered Glass

Specifications:

• Material: 3/4″ (19 mm) Brass Tubing

• Glass Thickness Range: 1/4″ to 1/2″ (6 to 12 mm)
• Hole Diameter Required: 1/2″ (12 mm)
• Center-to-Center Hole Spacing: 6″ (152 mm); 8″ (203 mm)

Technical References & CAD Drawings

Brochures & Literature		CAD Drawings – PDF
Frameless Shower Door Hardware Catalog		SQ Series Back-to-Back Detailed CAD Drawings.pdf
Specifications		Cleaning & Maintenance
Door Pull Specifications		Frameless Shower Door Glass and Hardware Cleaning Instructions
CAD Drawings – dwg
SQ Series Back-to-Back Detailed CAD.dwg
