CRL Circular Style Door Pulls are made of a heavy wall brass tubing to match hinge hardware. Consists of one pull for each side of the door. Brass back-up washers and nylon spacer washers prevent glass-to-metal contact. Available only in 5-1/8″ (130 mm) size.
CRL’s offering of quality Pull Handles has grown to over a dozen distinct models in numerous different finishes. There’s a handle to complement the décor of virtually any shower or wardrobe door, and each one is constructed of only the finest materials. Whether you choose a back-to-back or single-sided handle, you can rest assured that it will be easy-to-install, and will serve its purpose beautifully for many years. Custom designs and finishes are also available when you need something special.
Features:
- 3/4″ (19 mm) Diameter Brass Tubing
- Circular Shape Ideal for Matching Softer or Curved Decors
- Fits 1/4″ to 1/2″ (6 to 12 mm) Thick Glass
- Available in Several Popular Sizes and Finishes
- Use 1/4″ to 1/2″ (6 to 12 mm) Monolithic Tempered Glass
Specifications:
- Material: 3/4″ (19 mm) Diameter Brass Tubing (1.5 mil thick); 1-1/4″ (32 mm) Diameter Washers
- Glass Thickness Range: 1/4″ (6 mm) to 1/2″ (12 mm)
- Hole Diameter Required: 1/2″ (12 mm)

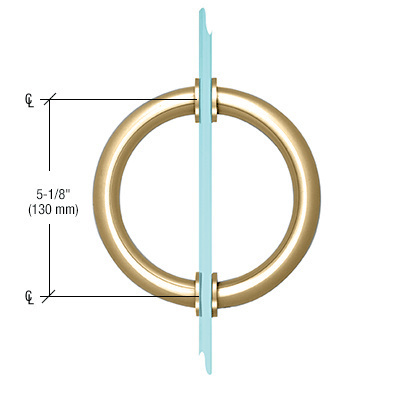

- Center-to-Center Hole Spacing: 5-1/8″ (130 mm)
Technical References & CAD Drawings
| Brochures & Literature | Cleaning & Maintenance | ||
| Frameless Shower Door Hardware Catalog
|
Frameless Shower Door Glass and Hardware Cleaning Instructions
|
||
| Specifications | |||
| Door Pull Specifications
|
Product Details
| Construction | Tubular | Mounting Center To Center | 5-1/8 in. (130 mm) |
| Design Style | Beveled | Mounting Type | Glass Mount – Back To Back |
| Diameter | 3/4 in. (19 mm) | Opening Style | Slide, Fold, Swing(side), Pivot(floor) |
| Enclosure Type | Corner, Niche, Bathtub, Tailor Made Solutions | Projection From Surface | 2-3/4 in. (70 mm) |
| Glazing Thickness | 1/4 in. To 1/2 in. (6mm To 12 mm) |
Style Washer Diameter | 1-1/4 in. (32) |
| Material | Brass | Style Washer | Yes |
